| 产品特性：夜视测距仪 | 是否进口：否 | 产地：瑞士 |
| 类型：激光测距仪 | 品牌：Leica/徕卡 | 型号：VECTOR 21 |
| 测量范围：21000 | 精确度：5mmm | 工作电压：25V |
| 重量：<2公斤g | 尺寸：205mmX178mmX82mmmm | 适用范围：电力、林业、水文、测绘 |
| 加工定制：否 | 规格：205mmX178mmX82mm |
VECTOR 21 Nite将赛峰Vectronix***的日间光学系统与***的图像增强技术相结合。掌上电脑的续航里程可达12公里，包含赛峰伟创力（Safran Vectronix）***360度3D电视° 数字磁罗盘。VECTOR 21 Nite中的激光器是1550 nm波长的激光器，因此其他夜视设备无法检测到。此外，与所有Vectronix产品一样，手持设备包含一个***人眼安全激光器。
向量族
VECTOR是一种易于使用的多功能光电器件，它取代了四个单独的器件。重量和体积的减少转化为更大的机动性、灵活性和作战准备。
基本能力
视野安全激光测距仪：VECTOR IV（二极管激光器）、VECTOR 21（二极管激光器）、VECTOR 23（光纤激光器）。这些技术提供使用寿命和消耗能源。
两个七倍（7倍）放大目镜。直径为6毫米的大出瞳孔非常容易放置，这样两只眼睛都能接收到尽可能多的光线。
两个具有扩展对比度和分辨率特性的42 mm物镜。这种宽光圈产生清晰明亮的图像——即使场景照明不理想。
一种数字磁罗盘（DMC），包括方位、倾斜和倾斜的磁性和重力传感器(±45°). 全三维能力确保正确的读数，即使在倾斜和倾斜的位置。
处理
双按钮控制减少了培训和再培训的工作量，允许新用户在任何情况下快速正确地操作。
数字输出通过RS232端口即时，无错误的数据传输。
向量21 NITE
可用配件和选项
双目增强器可将放大倍数提高40%至10倍，距离测量增益为25%
与广泛使用的GPS接收机通信
射击软件的坠落
数据调用软件
蓝牙
重要提示：该产品受瑞士出口管制。
ESSENTIAL CAPABILITIES
A 100 % eyesafe laser rangefinder: VECTOR IV (diode laser), VECTOR 21 (diode laser), VECTOR 23 (fibre laser). These technologies provide the longest service life and consume the least energy.
Two seven times (7 x) magnifying eyepieces. The large exit pupils of 6 mm diameter are extremely easy to place so that both eyes receive as much light as possible.
Two 42 mm objectives with extended contrast and resolution characteristics. This wide aperture produces images that are clear and bright – even when scene illumination is not ideal.
A digital magnetic compass (DMC) incorporating magnetic and gravitation sensors for azimuth, bank and inclination (±45°). Full three dimensional capabilities ensure correct readings even in inclined and tilted positions.
HANDLING
Two-button control reduces the training and retraining effort allowing new users to operate and correctly in any situation.
Digital output via RS232 port for instant, errorfree data transfer.
VECTOR 21NITE

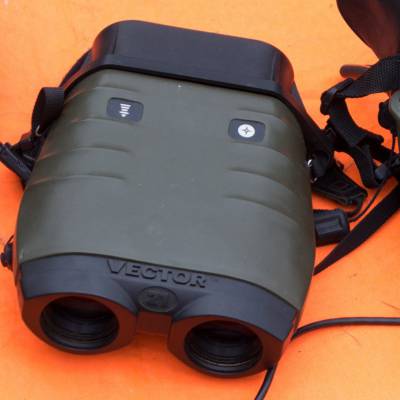

VECTOR 21 Nite integrates Safran Vectronix’ unrivaled day optics with superior image intensification technology. The handheld ranges to 12 km and contains Safran Vectronix’ industry-leading 3-dimensional, 360° digital magnetic compass. The laser in VECTOR 21 Nite is a 1550 nm wavelength laser and is conse undetectable by other night vision devices. Additionally, like all Vectronix products, the handheld contains a Class I Eye-Safe Laser.
AVAILABLE ACCESSORIES AND OPTIONS
Binocular Enhancer increases the magnification by 40% to 10xwith a 25 % gain in distance measurement
Communication with widely used GPS receivers
Fall-of-shot software
Data Recall software
Bluetooth
Important: VECTOR is subject to Swiss export control.
相关产品：VECTOR , 21 , NITE
